OCC Office


WB Moore’s Low Voltage Team was selected to install the Access Control System for the OCC Charlotte upfit in Charlotte, North Carolina.

The scope for Access Control and CCTV included the installation of CURE 9000 Software Program which was installed in unification with the Victor Site Manager Software Program (pre-installed on a Dell Small Form Factor PC). CURE 9000 is one of the industry’s most powerful security management systems providing 24×7 mission critical security and safety protection for people, buildings, and assets.

Our Team also installed (5) RM-DCM-2 door control modules, (5) DS150i RTE motions with trim plates, (1) AX-084C Airphone Intercom Exchange, (5) Card Readers including rough-in, iSTAR Ultra Door Controller with Access Control headend unit, and (6) Security Cameras. The following headend equipment also included (1) NVR with POE switch, (1) Intercom A/V door station, (1) Intercom A/V master stations, (1) Intercom external signaling/paging speakers, and (1) Rackmount KVM for security system.

On this project our Low Voltage Team worked alongside our Electrical Team for the installation of conduit and junction boxes.

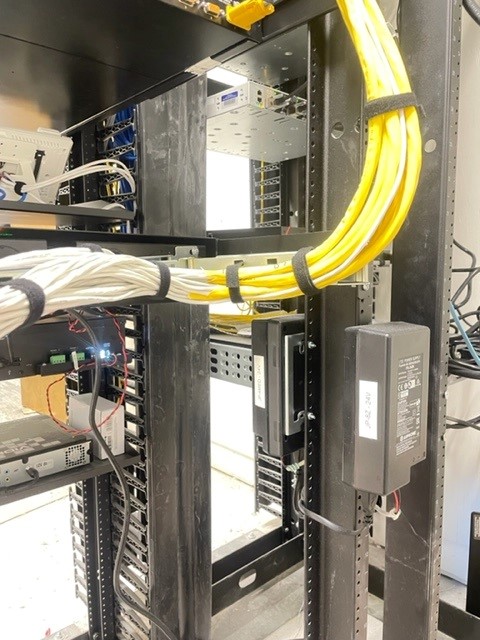

OCC Airphone power

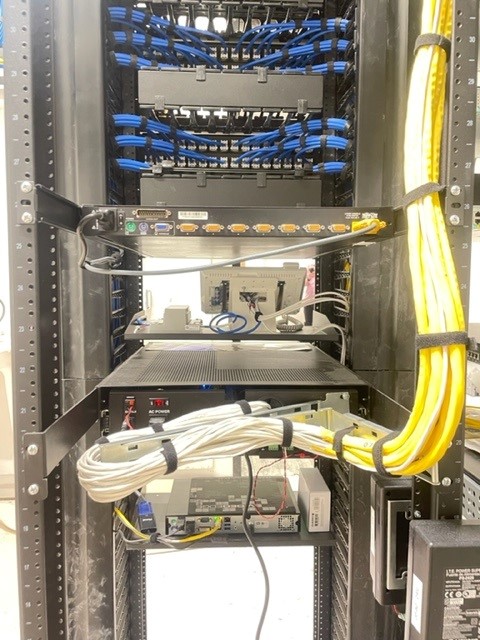

OCC Back of rack wiring

Project Details

WBM Job Number: 2022-104
Year of Completion: 2023
Industry Sector: Low-Voltage
Contract Amount: $48,000
Project Location: Charlotte, NC
